FLDS Motion · Team Reference

Global Tokens

Copy :root values into production recipes.

Durations

--dur-fast: 100ms
Press · dropdown · uncheck · variant ring
--dur-slow: 160ms
Hover · check-in · tooltip · toast exit · forms · alias --dur-local
--dur-toggle: 160ms
Knob + chevron · track calc(var(--dur-toggle) × 1.625)
--dur-content: ~213ms
Accordion open · tabs · toast enter · slow × 4/3

Eases

--ease-ui: cubic-bezier(0.25, 0.46, 0.45, 0.94)
Default everywhere unless emphatic is called for
--ease-ui-emphatic: cubic-bezier(0.32, 0.72, 0, 1)
Toggle knob + accordion chevron only

Offsets: --tooltip-delay · 200ms · --acc-close-delay · 50ms
Always: ease-out · UI <300ms · transform + opacity · keyboard skips decorative motion
Never: ease-in · transition: all · scale(0) enter · table row transitions

Actions

Buttons must feel like they're listening.
All button variants share one hover and press path.

Action button · hover

Changes: rest → hover: border, fill, label color +1 tier
Duration: 160ms · --dur-local
Ease: --ease-ui
Avoid: Disabled: frozen at rest, no feedback

Action button · press

Changes: rest/hover → pressed: scale(0.98)
Duration: Instant on press · 100ms on release
Ease: --ease-ui on release only
A11y: Skip press scale when disabled or prefers-reduced-motion

Overlays

Skip delay on subsequent hovers; the group feels faster for it.
Dropdown enter/exit and tooltip group timing.

Dropdown · open / close

Changes: closed ↔ open: opacity, translateY(-6px), scale(0.98→1), backdrop-filter: blur(4px) (optional)
Duration: 100ms · --dur-fast
Ease: --ease-ui
Notes: Close holds visibility until exit finishes · focus hop = instant

Tooltip · cold entry / exit

Changes: Enter: hidden → visible: opacity + scale(0.94→1) · Exit: opacity only
Duration: Enter: 200ms delay then 160ms · Exit: 100ms, no delay
Ease: --ease-ui

Tooltip · warm hop

Changes: Tooltip A → B within group: instant swap
Duration: 0ms
Ease: instant
A11y: Reduced motion: opacity-only or instant show

Links

Nothing in the real world appears from nothing.
Underline wipe and chevron shaft; same chevron motion on material tiles.

Compare materials Documentation

Text link · hover

Changes: rest → hover: underline wipe L→R via background-size
Duration: 160ms
Ease: --ease-ui
A11y: :focus-visible matches hover

Chevron link · hover

Changes: rest → hover: shaft scaleX(0.08→1) + translateX(3px)
Duration: 160ms
Ease: --ease-ui
A11y: Reduced motion: color/underline only, skip shaft

Toggles

Start from scale(0.95), never from zero.
Switch knob leads; checkboxes draw the mark; radios scale the dot.

Remote monitoring

Priority support

Email digest

Notify when print completes

Annual billing

Monthly billing

Switch · off → on

Changes: Knob slides first · track fill/border follows
Duration: Knob 160ms · track 260ms (--dur-toggle × 1.625)
Ease: Knob --ease-ui-emphatic · track --ease-ui
Static: Track size
A11y: Space toggles · reduced motion: instant position + color

Checkbox · check

Changes: unchecked → checked: brand fill + stroke-dashoffset draw-in
Duration: 100ms · --dur-fast
Ease: --ease-ui
Static: Box size
A11y: Space same draw · reduced motion: skip stroke-dash

Checkbox · uncheck

Changes: checked → unchecked: mark undraws, fill clears
Duration: 50ms (faster than check)
Ease: --ease-ui
A11y: Space same undraw · reduced motion: instant clear

Radio · select

Changes: unselected → selected: inner dot scale(0→1)
Duration: 160ms
Ease: --ease-ui
Static: Outer ring size
A11y: Arrow keys · reduced motion: instant dot

Forms

Details nobody notices. That's the point.
Fields validate on blur; error and success feedback fade inside a reserved slot so siblings never shift.

Email address

Printer

Codename

Wrong codename. Try Finkle.

Backup email

Text field · focus

Changes: rest → focused: border color step only
Duration: 160ms
Ease: --ease-ui
Static: Height, padding, label position
A11y: :focus-visible matches pointer · reduced motion: color at 0.01ms

Text field · validate

Changes: neutral → valid/invalid: border, status icon, message opacity
Duration: In ~160ms · out 70ms opacity-only
Trigger: On blur only, not per keystroke
Static: Reserved message slot height; never animate height
A11y: Validate on blur for keyboard too

Select · open

Changes: closed → open: dropdown enter recipe; trigger border → brand instantly
Duration: Menu 100ms · trigger border 0ms
Ease: --ease-ui on menu
Static: Field width
A11y: Opens on pointerdown · instant hop when keyboard-navigating options
Notes: Closed + focused keeps border step until blur

Error message · swap

Changes: Message A → B: opacity out 70ms, new message fades in ~160ms
Duration: Out 70ms · in ~160ms
Ease: --ease-ui
Static: Slot dimensions fixed
Avoid: Height animation · error icon stroke draw on exit (opacity-only)

Cards & Rows

Most details users never consciously notice. That is the goal.
Variant ring selection and product row hover share the unified card language.

Standard

$149

Tough

$299

Flexible

$189

Form 4 · SLA Printer

Engineering-grade resin · 25µm layers

In stock

Card · hover

Changes: rest → hover: 2% fill tint + border +1 step
Duration: 160ms
Ease: --ease-ui
Static: Size, padding, content layout
A11y: :focus-within matches hover · reduced motion: color/border only

Variant · select

Changes: unselected → selected: inset brand ring opacity 0→1 on ::after + title text → brand orange
Duration: 100ms on ring + text color
Ease: --ease-ui
Static: Fixed 2px inset ring; never animate spread or real border width
A11y: Enter/Space · reduced motion: instant ring swap

Product row · hover

Changes: rest → hover: shadow lift only
Duration: 160ms
Ease: --ease-ui
Static: Layout · no press scale
A11y: Reduced motion: shadow or opacity (no transform)

Never animate

Box-shadow spread · border 1px→2px · selected background tint · press scale on cards

Accordion

Exit fast: the system is responding, not deliberating.
Close orchestrates copy fade before panel collapse; chevron uses emphatic ease.

What materials are supported?

Over 40 engineering-grade resins across SLA, SLS, and FDM platforms. Each material ships with validated print settings in PreForm or Dashboard.

Is PreForm free to use?

Yes. PreForm is free to download and use for print preparation across all Formlabs printers, with no license fee or subscription required.

Does the Form 4 require a subscription?

No subscription required. All software and firmware updates are included at no additional cost for the lifetime of the printer.

Trigger · hover / open

Changes: rest → hover/open: label color darkens; no background fill
Duration: 160ms
Ease: --ease-ui
Static: Row height, dividers
A11y: Enter/Space toggles · reduced motion: color only

Chevron · open

Changes: closed → open: rotate(180deg)
Duration: ~213ms · --dur-content
Ease: --ease-ui-emphatic
Static: Icon box
A11y: Reduced motion: instant rotation or opacity swap

Panel · open / close

Changes: collapsed ↔ expanded: height/grid reveal + copy fade · close: copy first, then panel after --acc-close-delay
Duration: Open panel ~213ms · close copy ~160ms then panel ~160ms
Ease: --ease-ui
A11y: Reduced motion: instant expand/collapse

Never animate

Trigger background · divider position · per-row box shadows · height animation is accordion-only

Tabs

Transitions, not keyframes: stay interruptible.
Pill glides always; content crossfades on pointer; keyboard snaps content instantly.

Form 4

Next-generation SLA with LFS™ technology. 25µm resolution, sub-day turnaround, and 40+ engineering-grade materials.

Print accuracy

145 × 145 × 185mm build volume. ±0.2% dimensional accuracy. Layer thickness 25–300µm across all materials.

40+ resins

Engineering, dental, and prototyping resins. All ship with validated print settings; no calibration required.

PreForm + Dashboard

Free print preparation software. Fleet management, remote monitoring, and usage analytics via Dashboard.

Tab pill · move

Changes: Active tab A → B: pill translate + width morph
Duration: ~149ms · calc(var(--dur-content) × 0.7)
Ease: --ease-ui
A11y: Always runs; keyboard and reduced-motion only snap content, pill still animates

Text panel · pointer switch

Changes: Panel A → B: outgoing stays opaque; inner copy opacity + translateY(6px→0)
Duration: ~213ms · --dur-content
Ease: --ease-ui
Static: Grid stack, no layout shift
A11y: Keyboard: instant swap · rapid clicks <250ms: instant content

Image panel · pointer switch

Changes: Image A → B: opacity crossfade + mask-size wipe 150%→0% (gradient mask L→R)
Duration: ~213ms
Ease: --ease-ui
A11y: Keyboard/reduced motion: instant swap, no wipe

Never animate

Outgoing panel fade-out · layout reflow between panels · press scale on tabs

Carousel

Perception of speed matters as much as actual speed.
Native scroll + snap; CSS recipes are pagination dots only; card/arrow hovers: see Actions and Cards.

New

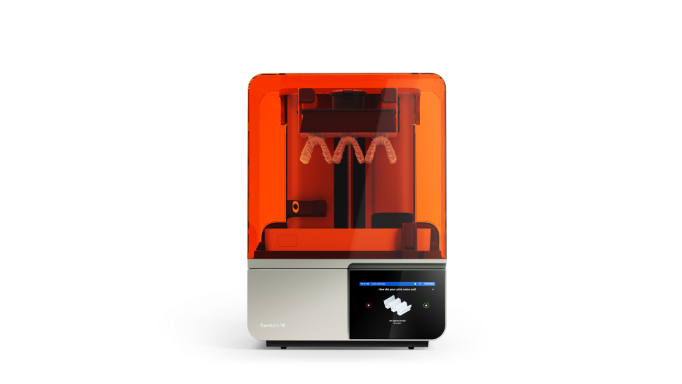

Form 4

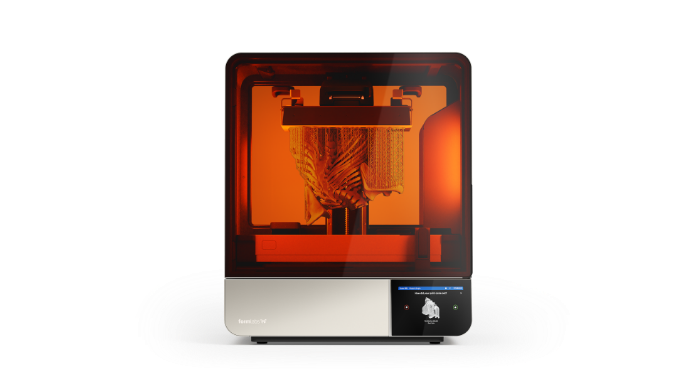

Form 4L

Form 4B

Form 4BL

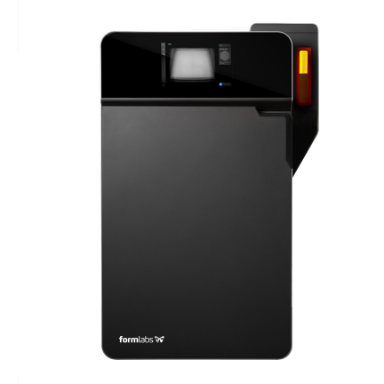

Fuse

Fuse X1

Form 3+

Form 3BL

Fuse 1+ 30W

Form Auto

Form Wash L

Pagination dot · active

Changes: inactive → active: opacity/fill step (tracks midpoint while dragging)
Duration: ~287ms · --dur-content × 1.35
Ease: --ease-ui
Static: Dot size 8px
A11y: Reduced motion: instant active state

Never animate

Scroll position via CSS transition · card/arrow hovers (see Actions, Cards) · layout reflow

Tiles

Every animation must answer: why does this animate?
Poster/video swap on hover; chevron uses Links recipe.

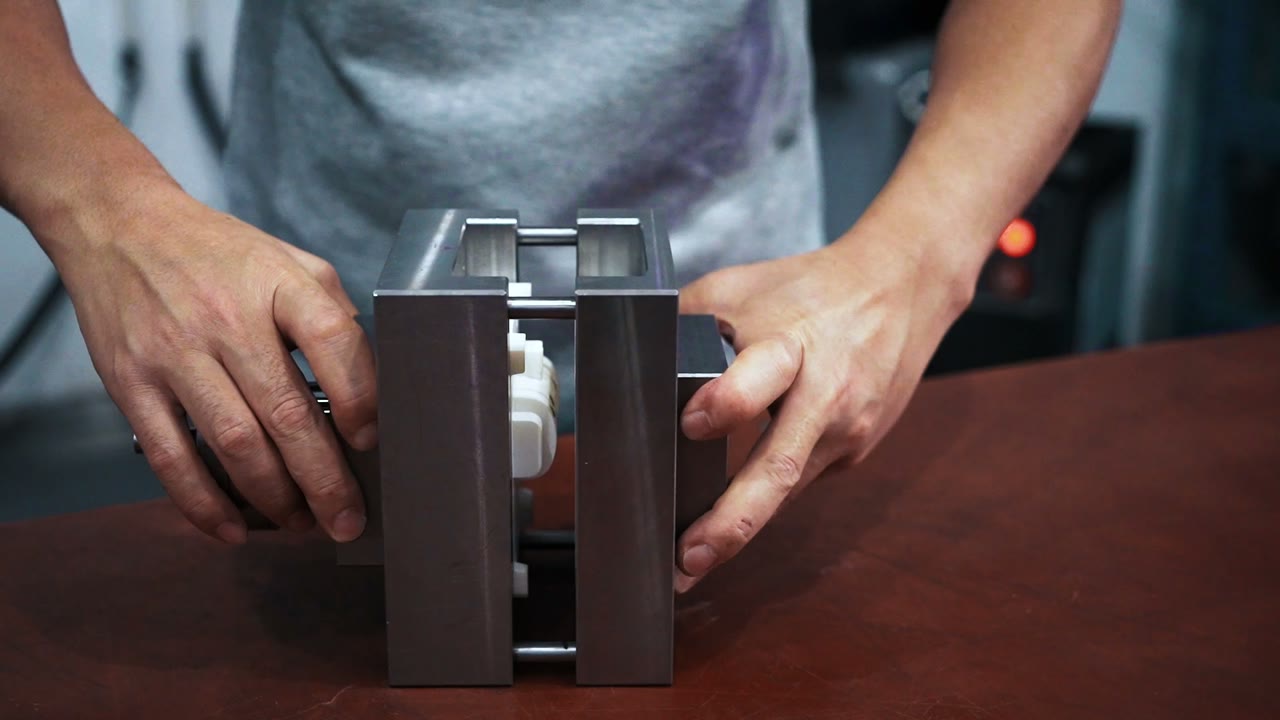

Rigid

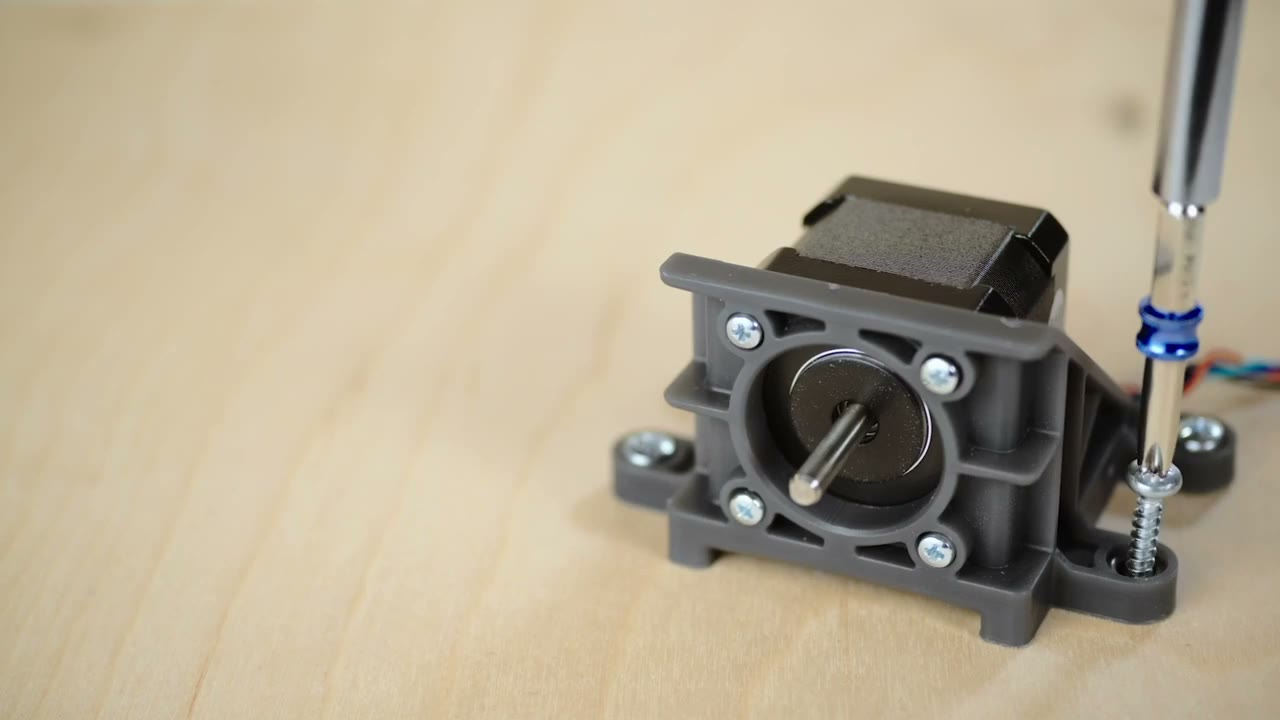

Tough

General purpose

Elastic

Tile · hover

Changes: rest ↔ hover: ring, scrim, chevron; poster ↔ video (instant after first frame). Leave: ring 100ms out, video pauses
Duration: Ring/scrim/chevron 160ms in · video swap instant after paint
Ease: --ease-ui
Static: Tile size, crop, hairline border
A11y: :focus-within matches hover · reduced motion: skip chevron transform

Never animate

Poster ↔ video opacity crossfade · layout reflow · hairline border color · video = play/pause not CSS tween
